Perhaps the most common way in which the flow measurement accuracy of any flow meter becomes compromised is incorrect installation and pressure-based flow meters are no exception to this rule. Allow 3-5 Days to Ship 21359.
How To Install A Pool Water Flowmeter Inyopools Com
Ensure the meter tube is completely filled with fluid at all times.
. Originally Posted by mas985. Call or visit today for BioGuard pool care products and expertise. Swimming Pool Flow Meters accurately measure the flow rate of residential and commercial swimming pools.
Installs horizontally vertically or even upside-down. Residential pools are not operated the same way and with the same scrutiny as commercial pools. Idaho Falls ID Tucson AZ Memphis TN.
How Is A Pool Flow Meter Used - Youtube Adjust the bypass to divert a minimum of 40 to 50 gpPool flow meter placement. It needs to be installed here to get the most unbiased readings. If playback doesnt begin shortly try restarting your device.
It is ideal to have a straight section of pipe that is 10x the pipe diameter before the meter and 4x the pipe diameter after the meter. Carefully measure the insert on the end of the meter. Home Pool Plumbing Flow Meters.
Blue White Flow Meters huge selection of water flowmeters for pools spas fountains or any application. Youll need to use a dry erase marker to mark 2 points on the pipe. The swimming pool flow meter should be installed after the heater and preferably the sanitation feed system in order to get the most accurate read.
Install the flow meter in the recommended position and altitude. Compare Add to. There is liability in owning a residential pool but.
My reply is probably much too late for the original poster but perhaps it will benefit someone. In liquid flow measurement installations ensure there is. Calculate 5 times the diameter of the pipe for your starting point ie.
Ad Shop professional quality pool chemicals and receive expert pool care advice. To be able to get optimum performance and better accuracy from any flow meter installation you need to imbibe the following general installation practice. SELECT AN INSTALLATION SITE provide a minimum of 8 clearance above the pipe for the Flowmeter.
Flow meters were always a good idea and many commercial swimming pools already benefit from flow meters as part of health and safety requirements relating to flow and filtration minimums. Is an established pool co. Analog Flow Meter Installation.
Keep in mind that you need 14 times the pipe diameter of straight pipe for the flow meter to. Pool flow meters measure the actual flow of water through your swimming pool recirculation system. PST Pool Supplies carries reliable flow meters from top brands like Blue White Industries Flowvis and more.
But a partially open valve upstream of the meter will require 25X the piping diameter and multiple disruptions such as a spiral or consecutive elbows can require 50x the piping diameter. Flow Meter Installation Guidelines. In general the meter should be placed on the return line after all system components except a chemical feeder and you need to leave five times the pipes diameter before the meter and two times the diameter after it.
Flow Vis H2flow Controls Inc Flow Meter. The location of your swimming pool equipment is very important in regard to the pool location. Flow meters for PVC and copper pipe up to 8 dia.
All flow meters come with different installation instructions which will vary depending on the pools pipes. 5 FlowVis flow meter FV-C-15. While you can locate a flow meter anywhere in your plumbing system it would be best to locate these flow meters on a horizontal section of pipe directly before or directly after the filter.
Most pumps dont have that much pipe on the suction side. Chat Support View cart. This is due to the fact that the less distance the water has to travel the better.
FlowVis Flow Meter 15 FlowVis Flow Meter 2 - 25 Retrofit FlowVis Flow Meter 2 - 25 - Jandy. In general downstream. 500 Swimming Pool Choices.
Explore Flow Meters For Pools. Our flow meter was installed before the filters and got stuck repeatedly. Signet Sensor Installation Fitting 2-12 Inch Clamp-On Saddle PVC Schedule 80 With EPDM O-Ring.

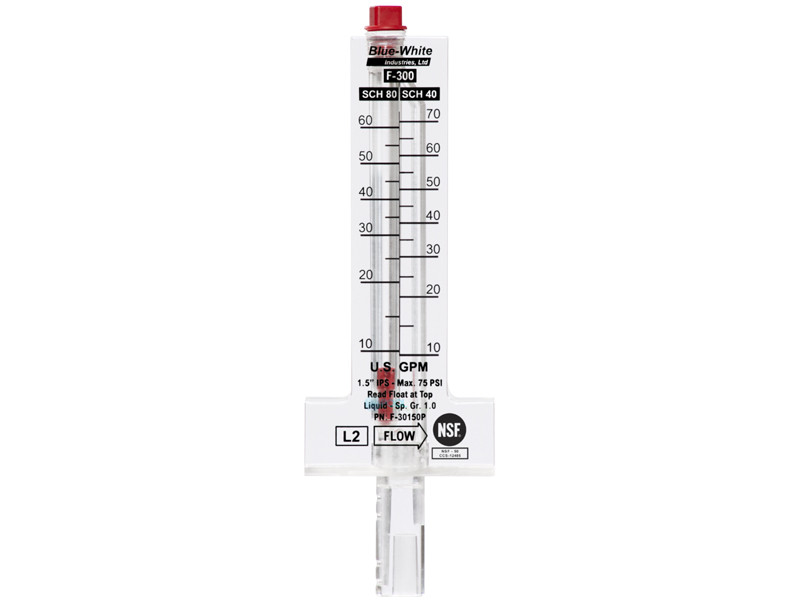

Having a flow meter installed insures our pool pump isnt running more than it needs to. Also on the suction side of the pump you have to deal with debris clogging the flow meter. 1-12 PVC pipe only needs 7-12 before and 3 after the spot the F-300 Blue White flow meter is inserted.
The flow meter is. Then calculate 2 times the diameter of the pipe for your end point. Digital Flow Meter Installation.
FREE Shipping on orders 35 Menu. Using a FlowVis Flow Meter to Set Your Pool Pump Run Time. Straight run should be at least 20x the piping diameter when an elbow tee filter or other disruption exists upstream of the meter.
Calibrated to the size of your piping they measure gallons per minute. Pool Flow Meter Location 10 out of 10 based on 344 ratings. If it is then were just throwing money away.
First find a long area of pipe to work on. Pool flow meters measure the actual flow of water through your swimming pool recirculation system. A flow meter measures the flow of water through the pool s.
A 2 inch pipe means your starting point is at 10 inches. The placement of the flow meter is critical to obtaining accurate flow readings. The first thing to keep in mind is that the closer the pool equipment is to the pool the more efficient it will be.
You will need at least 5X the pipe diameter before the flow meter and 2X the pipe diameter after. Use the clamp on the meter to hold it in place. If you need to replace your pool flow meter then you are in the right place.
Where Should My Flow Meter be Located. So I moved it to a position after the filters and have had no problems. Keep in mind that you need 14 times the pipe diameter of straight pipe for the flow meter to remain accurate.
Drill a hole into your pipe. Follow the manufacturers instructions to use the right-size bit for your drill. The following list shows some of the details one must consider in installing a pressure-based flow meter element.
Then you will need to.
